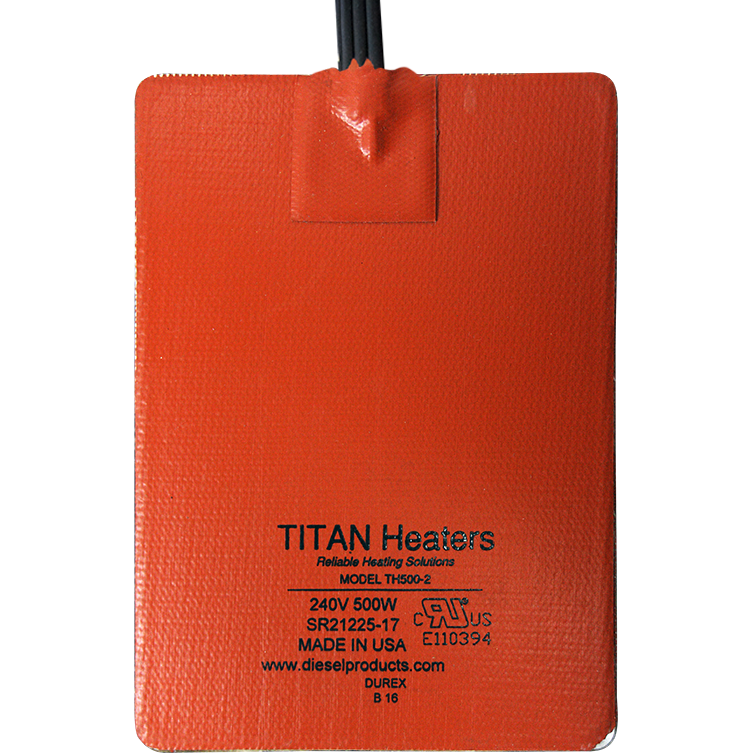

Titan Engine Fluid Heater Pad – 240V AC – 500W – 5.25″ × 7″

The TH500-2 is a 500 W pad on 240 V, sized for 13–27 qt oil pans and 16–32 gal hydraulic tanks: medium-duty trucks, loaders and generators wired to 240 V power. Bare leads for hardwiring. It bonds with 3M VHB adhesive and warms the fluid from underneath.

In the box: the pad, instruction sheet, two zip ties, a silicone packet and a spreader.

Key features

• Sized for: oil pans of 13–27 qt and hydraulic tanks of 16–32 gal
• Connection: bare leads, hardwired to a 240 V circuit
• Power: 500 W, 240 V, 2.1 A
• Adhesive: 3M VHB, peel and stick, permanent bond to clean bare metal
• Rated to: −37 °C / −35 °F
• Element: certified UL component
• Warranty: lifetime on padheaters.com orders
• Shipping: free in Canada and the US

The TH500-2 is a 500 W, 240 V silicone heater pad for 13–27 qt oil pans and 16–32 gal hydraulic tanks, with bare leads for hardwiring.

• Model: TH500-2
• Voltage: 240 V AC
• Output: 500 W
• Current: 2.1 A
• Size: 5.25 in × 7 in
• Connection: Bare leads for hardwiring; no plug
• Oil pan: 13–27 qt
• Hydraulic tank: 16–32 gal
• Warranty: Lifetime on padheaters.com orders
• Shipping: Free in Canada and the US

Free shipping to Canada and the United States. We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with tracking information.

Every TITAN heater carries a lifetime warranty against manufacturing defects. If a heater fails, contact us and we will repair or replace it. We do not offer refunds.

Size to your oil pan or hydraulic tank capacity, not your engine size. An undersized pad heats slowly; an oversized one can create hot spots.

Find your size or ask the TITAN team.
