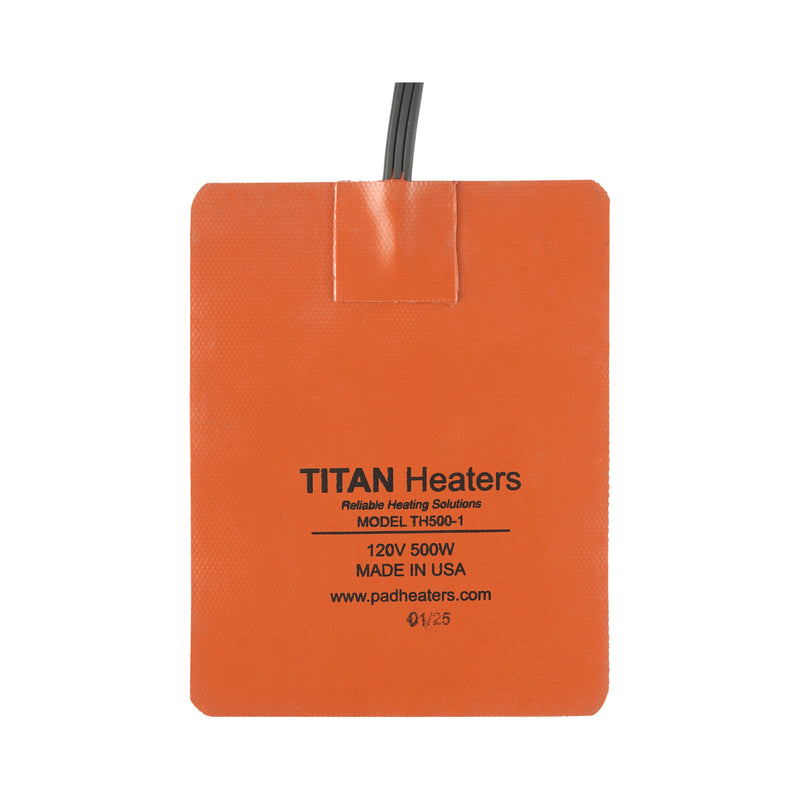

Titan Engine Fluid Heater Pad – 120V AC – 500W – 5.25″ × 7″

The TH500-1 is the step up for bigger engines and tanks: 500 W, 120 V, sized for 13–27 qt oil pans and 16–32 gal hydraulic tanks. Medium-duty trucks, loaders, telehandlers and generators in this range start on it all winter. It bonds to the bottom of the pan or tank with 3M VHB adhesive and warms the fluid from underneath.

Plug it in at night, or run it through the thermostat outlet so it only draws power below 2 °C / 35 °F. In the box: the pad, instruction sheet, two zip ties, a silicone packet and a spreader.

Key features

• Sized for: oil pans of 13–27 qt and hydraulic tanks of 16–32 gal
• Typical fit: medium-duty trucks, loaders, telehandlers, 20–60 kW generators
• Power: 500 W, 120 V, 4.2 A, 6 ft cord with grounded plug
• Adhesive: 3M VHB, peel and stick, permanent bond to clean bare metal
• Rated to: −37 °C / −35 °F
• Element: certified UL component
• Warranty: lifetime on padheaters.com orders
• Shipping: free in Canada and the US

The TH500-1 is a 500 W, 120 V silicone heater pad for 13–27 qt oil pans and 16–32 gal hydraulic tanks.

• Model: TH500-1
• Voltage: 120 V AC
• Output: 500 W
• Current: 4.2 A
• Size: 5.25 in × 7 in
• Connection: 6 ft cord, grounded plug (NEMA 5-15P)
• Oil pan: 13–27 qt
• Hydraulic tank: 16–32 gal
• Warranty: Lifetime on padheaters.com orders
• Shipping: Free in Canada and the US

Free shipping to Canada and the United States. We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with tracking information.

Every TITAN heater carries a lifetime warranty against manufacturing defects. If a heater fails, contact us and we will repair or replace it. We do not offer refunds.

Size to your oil pan or hydraulic tank capacity, not your engine size. An undersized pad heats slowly; an oversized one can create hot spots.

Find your size or ask the TITAN team.
