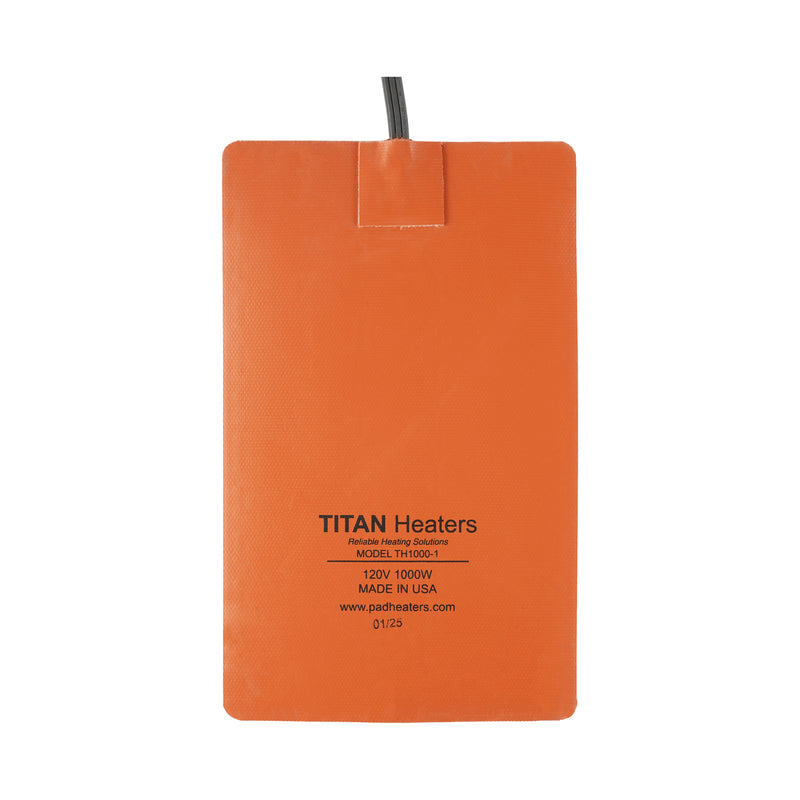

Titan Engine Oil and Fluid Heater Pad – 120V AC – 1000W – 6.25″ × 10.25″

The TH1000-1 is the largest Titan pad: 1000 W, 120 V, sized for 26–48 qt oil pans and 31–100 gal hydraulic tanks. Highway tractors, excavators, haul trucks and large generators use it on the pan or the hydraulic reservoir. It bonds with 3M VHB adhesive and warms the fluid from underneath, so a big diesel turns over and the hydraulics respond at startup.

It draws 8.3 A; give it its own outlet or run it through the thermostat outlet so it only runs below 2 °C / 35 °F. In the box: the pad, instruction sheet, two zip ties, a silicone packet and a spreader.

Key features

• Sized for: oil pans of 26–48 qt and hydraulic tanks of 31–100 gal
• Typical fit: highway tractors, excavators, haul trucks, large generators
• Power: 1000 W, 120 V, 8.3 A, 6 ft cord with grounded plug
• Adhesive: 3M VHB, peel and stick, permanent bond to clean bare metal
• Rated to: −37 °C / −35 °F
• Element: certified UL component
• Warranty: lifetime on padheaters.com orders
• Shipping: free in Canada and the US

The TH1000-1 is a 1000 W, 120 V silicone heater pad for 26–48 qt oil pans and 31–100 gal hydraulic tanks.

• Model: TH1000-1
• Voltage: 120 V AC
• Output: 1000 W
• Current: 8.3 A
• Size: 6.25 in × 10.25 in
• Connection: 6 ft cord, grounded plug (NEMA 5-15P)
• Oil pan: 26–48 qt
• Hydraulic tank: 31–100 gal
• Warranty: Lifetime on padheaters.com orders
• Shipping: Free in Canada and the US

Free shipping to Canada and the United States. We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with tracking information.

Every TITAN heater carries a lifetime warranty against manufacturing defects. If a heater fails, contact us and we will repair or replace it. We do not offer refunds.

Size to your oil pan or hydraulic tank capacity, not your engine size. An undersized pad heats slowly; an oversized one can create hot spots.

Find your size or ask the TITAN team.
