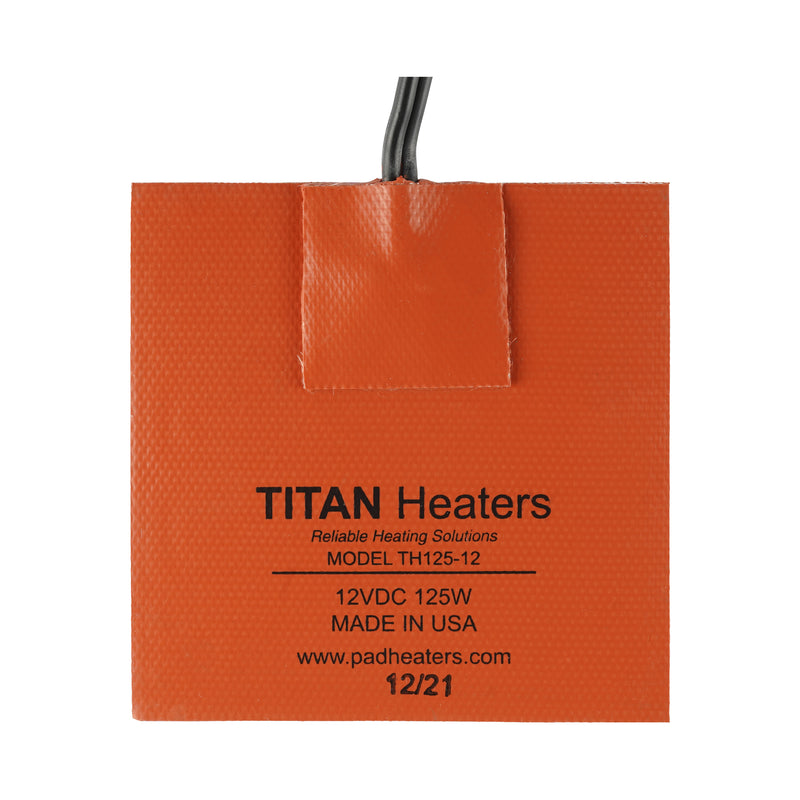

Titan Hydraulic Tank Heater Pad – 12V DC – 125W – 4″ × 4″

The TH125-12 runs off a 12 V system, for hydraulic tanks of 2–3 gal on mobile equipment that cannot be plugged in. It bonds to the tank with 3M VHB adhesive and warms the fluid from underneath. It draws 10.4 A, so wire it through a fuse and a switch and run it with the engine or a charger. Not rated for oil pans.

In the box: the pad, instruction sheet, two zip ties, a silicone packet and a spreader.

Key features

• Sized for: hydraulic tanks of 2–3 gal
• Not for: oil pans
• Connection: bare leads, fused and switched on the 12 V system
• Power: 125 W, 12 V DC, 10.4 A
• Adhesive: 3M VHB, peel and stick, permanent bond to clean bare metal
• Rated to: −37 °C / −35 °F
• Element: certified UL component
• Warranty: lifetime on padheaters.com orders
• Shipping: free in Canada and the US

The TH125-12 is a 125 W, 12 V DC silicone heater pad for 2–3 gal hydraulic tanks. It is not rated for oil pans.

• Model: TH125-12
• Voltage: 12 V DC
• Output: 125 W
• Current: 10.4 A
• Size: 4 in × 4 in
• Connection: Bare leads; wire through a fuse and a switch to the 12 V system
• Hydraulic tank: 2–3 gal
• Oil pan: Not rated
• Warranty: Lifetime on padheaters.com orders
• Shipping: Free in Canada and the US

Free shipping to Canada and the United States. We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with tracking information.

Every TITAN heater carries a lifetime warranty against manufacturing defects. If a heater fails, contact us and we will repair or replace it. We do not offer refunds.

Size to your oil pan or hydraulic tank capacity, not your engine size. An undersized pad heats slowly; an oversized one can create hot spots.

Find your size or ask the TITAN team.
